EN10147 1250MM Regular Spangle Gi Steel Coil Hot Dipped Galvanized Steel Sheet In Coils
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | baogang |
| Certification | Approved by SGS,ISO |
| Minimum Order Quantity | 25 tons |
| Price | negotiable |
| Packaging Details | Waterproof paper for the inner packaging, galvanized steel or coated outer packaging, side protection plate, and wrapped with seven steel belts. |
| Delivery Time | 7-15 Days |
| Payment Terms | T/T, L/C at sight,West Union,D/P,D/A,Paypal |
| Supply Ability | 2000 Ton/Tons per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Making Pipes, Cutting Sheets, Making Small Tools, Making Corrugated Sheets, Making Container, Making Fences, Making Container | Type | Steel Coil |
|---|---|---|---|
| Thickness | 2.1-3.0mm, 0.12mm-6.0mm | Standard | AiSi |
| Length | Require | Certificate | Ce, KS, JIS, ISO9001 |
| Grade | DX51D | Coating | Z81-Z120 |
| Technique | Cold Rolled Based, Cold Rolled Based | Tolerance | ±1% |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling | Spangle Type | Regular Spangle |
| Skin Pass | Yes | Oiled Or Non-oiled | Slightly Oiled |
| Hardness | Mid Hard | Delivery Time | 15-21 Days |
| Product Name | Galvanized Steel Plate | Surface | Galvanized Coated |
| Special Use | High-strength Steel Plate | Shape | Flat.sheet |
| Keyword | Galvanzied Sheet | Material | ASTM/AISI/SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z Q195-q345 |
| Spangle | Big Medium Small Zero | Port | TIANJIN |
| High Light | 1250MM Regular Spangle Gi Steel Coil,EN10147 Regular Spangle Gi Steel Coil,hot dipped galvanized steel sheet in coils |
||
Product Description
EN 10147 1250MM regular spangle hot dipped galvanized steel coil
Galvanized coil: dip the steel sheet into the molten zinc bath to make the surface adhere with a layer of zinc. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in the molten zinc plating bath to make galvanized steel plate; Alloyed galvanized steel plate. This kind of steel plate is also made by hot-dip method, but it is heated to about 500 ℃ immediately after being out of the tank to form an alloy film of zinc and iron. This galvanized coil has good coating adhesion and weldability.
|
Technical Standard
|
EN10147/EN10142/DIN17162/JIS G3302/ASTM A653
|
|
Steel Grade
|
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD ; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,
SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570 ; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80 (550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550) ; or Customer’ s Requirement |
|
Type
|
Coil/Sheet/Plate/Strip
|
|
Thicnkess
|
0.12~6.0mm or customer's requirement
|
|
Width
|
600-1500mm according to customer's requirement
|
|
Type of Coating
|
Hot Dipped Galvanized Steel(HDGI)
|
|
Zinc Coating
|
30-275g/㎡
|
|
Surface Treatment
|
Passivation(C), Oiling(O), Phosphating(P), Untreated(U) sealing(L),
|
|
Surface Stucture
|
Normal spangle coating(NS), minimized spangle coating(MS), spangle- free(FS)
|
|
Quality
|
Approved by SGS,ISO
|
|
ID
|
508mm/610mm
|
|
Coil Weight
|
3-20 metric ton per coil
|
|
Package
|
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer's requirement |
|
Export Market
|
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc
|

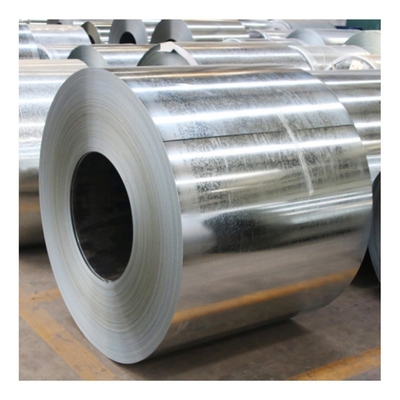

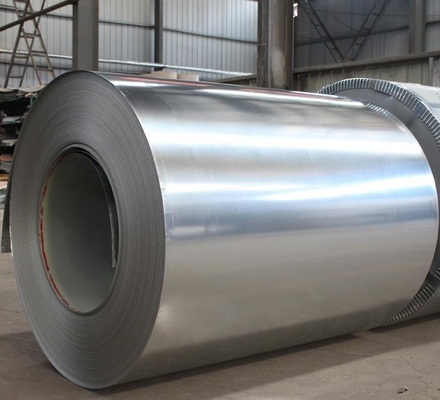

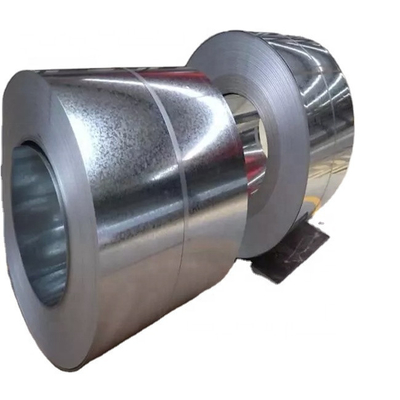

Details Images
FAQ
Q1: Are you factory or trading company?
A: We are manufacturer and trader. welcome you visit our factory.
Q2: Can you guarantee your prepainted steel coil quality?
A: Best quality is our principle all the time. We have 2 times QC one by one. Our vision: to be world-class professional, reliable and outstanding steel supplier.
Q3: Do you provide samples? is it free or extra 2?
A: The sample could can provide for customer with free, but the freight will be covered by customer account. The sample freight will be returned to customer account after we cooperate.
Q4: What is your MOQ?
A: We welcome your trial order MOQ 25 T to be stuffed in 1*20GP Large quantity can reduce your cost.
Q5:What is your main market?
A: PPGI PPGL coils are mainly exported to Afirca,Southeast Asia, the Middle East, Central Asia Europe, North & South America and other countries and regions.
