JIS G3302 15mm Cold Rolled Galvanized Steel Coils Mid Hard

  • JIS G3302 15mm Cold Rolled Galvanized Steel Coils Mid Hard
  • JIS G3302 15mm Cold Rolled Galvanized Steel Coils Mid Hard
  • JIS G3302 15mm Cold Rolled Galvanized Steel Coils Mid Hard
Place of Origin Shandong, China
Brand Name baogang
Certification Approved by SGS,ISO
Minimum Order Quantity 25 tons
Price negotiable
Packaging Details Waterproof paper for the inner packaging, galvanized steel or coated outer packaging, side protection plate, and wrapped with seven steel belts.
Delivery Time 7-15 Days
Payment Terms T/T, L/C at sight,West Union,D/P,D/A,Paypal
Supply Ability 2000 Ton/Tons per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Making Pipes, Cutting Sheets, Making Small Tools, Making Corrugated Sheets, Making Container, Making Fences, Making Corrugated Sheets Type Steel Coil
Thickness 0.21-0.50mm, 0.12mm-6.0mm Standard AiSi
Length Require Certificate Ce, JIS, GS
Grade DX51D Coating Z81-Z120
Technique Cold Rolled Based, Hot Rolled Based Tolerance ±1%
Processing Service Welding, Punching, Cutting, Bending, Decoiling Spangle Type Regular Spangle
Skin Pass Yes Oiled Or Non-oiled Non-oiled
Hardness Mid Hard Delivery Time 15-21 Days
Surface Galvanized Coated Special Use High-strength Steel Plate
Shape Flat.sheet Keyword Galvanzied Sheet
Material ASTM/AISI/SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z Q195-q345 Spangle Big Medium Small Zero
Product Name Galvanized Steel Plate Port TIANJIN
High Light

15mm Cold Rolled Galvanized Steel Coils

,

JISG3302 Galvanized Steel Coils

,

Galvanized cold rolled steel coil
Leave a Message
Product Description

JIS G3302 15mm cold rolled galvanized steel coil

Galvanized coil: dip the steel sheet into the molten zinc bath to make the surface adhere with a layer of zinc. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in the molten zinc plating bath to make galvanized steel plate; Alloyed galvanized steel plate. This kind of steel plate is also made by hot-dip method, but it is heated to about 500 ℃ immediately after being out of the tank to form an alloy film of zinc and iron. This galvanized coil has good coating adhesion and weldability.

Technical Standard
EN10147/EN10142/DIN17162/JIS G3302/ASTM A653
Steel Grade
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD ; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,
SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570 ; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50
(340), SQ CR80 (550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37
(255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550) ; or Customer’ s Requirement
Type
Coil/Sheet/Plate/Strip
Thicnkess
0.12~6.0mm or customer's requirement
Width
600-1500mm according to customer's requirement
Type of Coating
Hot Dipped Galvanized Steel(HDGI)
Zinc Coating
30-275g/㎡
Surface Treatment
Passivation(C), Oiling(O), Phosphating(P), Untreated(U) sealing(L),
Surface Stucture
Normal spangle coating(NS), minimized spangle coating(MS), spangle- free(FS)
Quality
Approved by SGS,ISO
ID
508mm/610mm
Coil Weight
3-20 metric ton per coil
Package
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer's requirement
Export Market
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc
Details Images

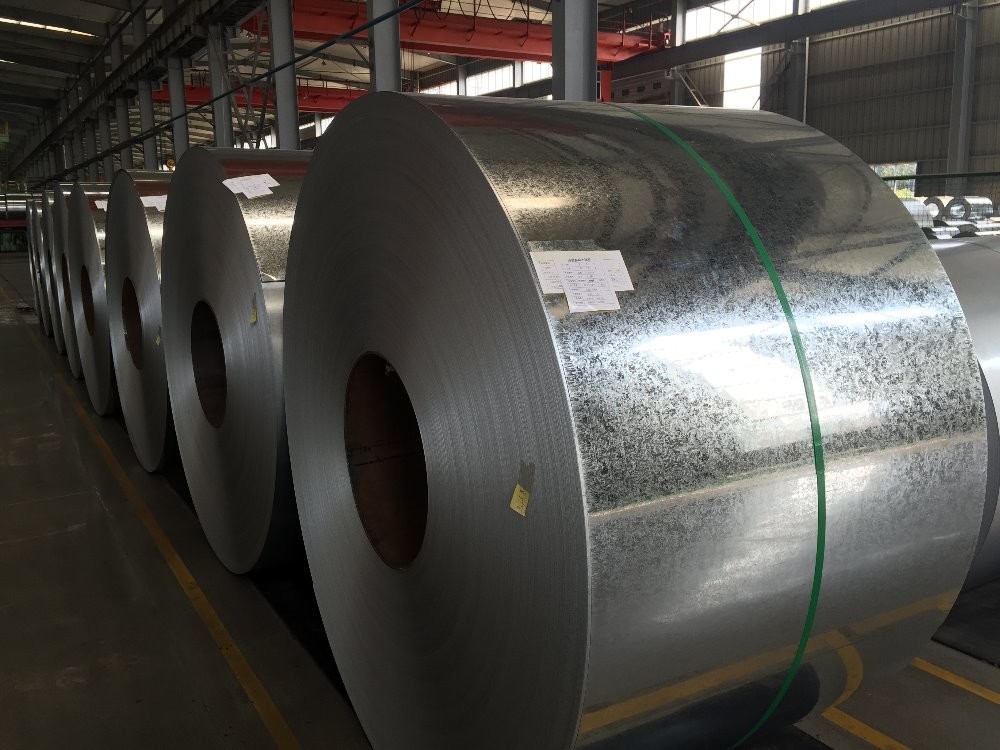

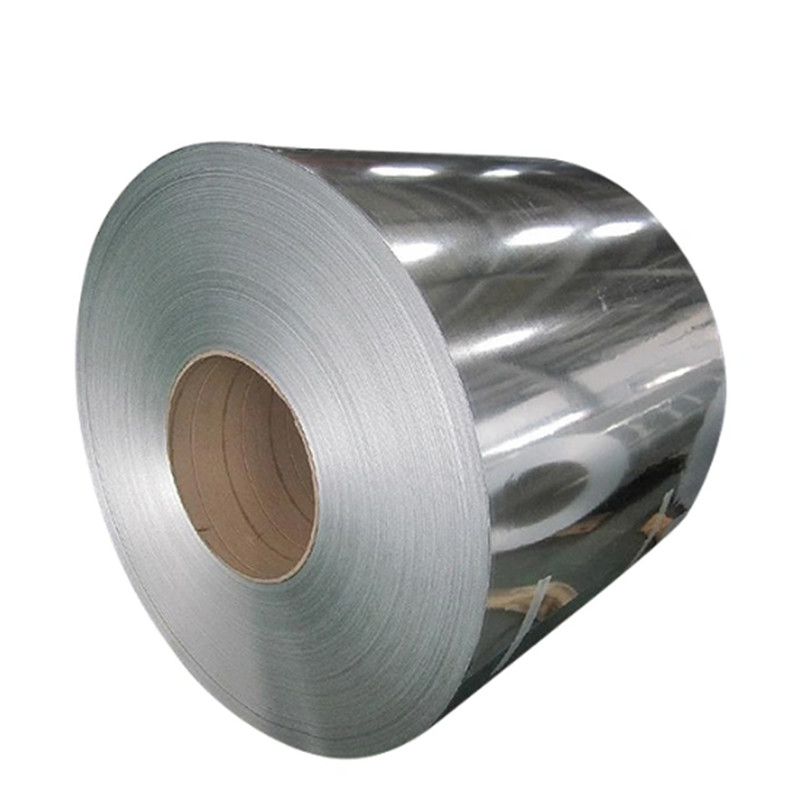

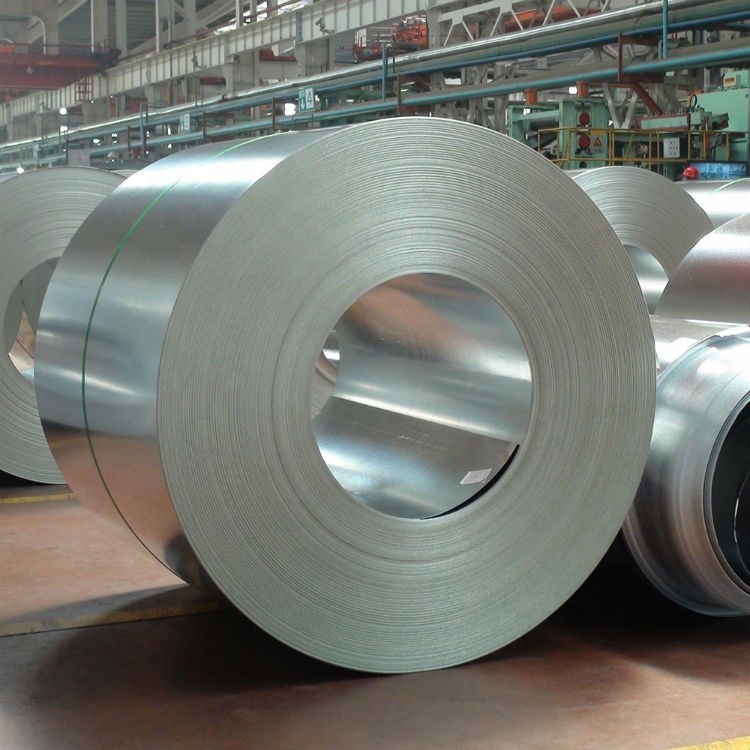

JIS G3302 15mm Cold Rolled Galvanized Steel Coils Mid Hard 0JIS G3302 15mm Cold Rolled Galvanized Steel Coils Mid Hard 1JIS G3302 15mm Cold Rolled Galvanized Steel Coils Mid Hard 2
